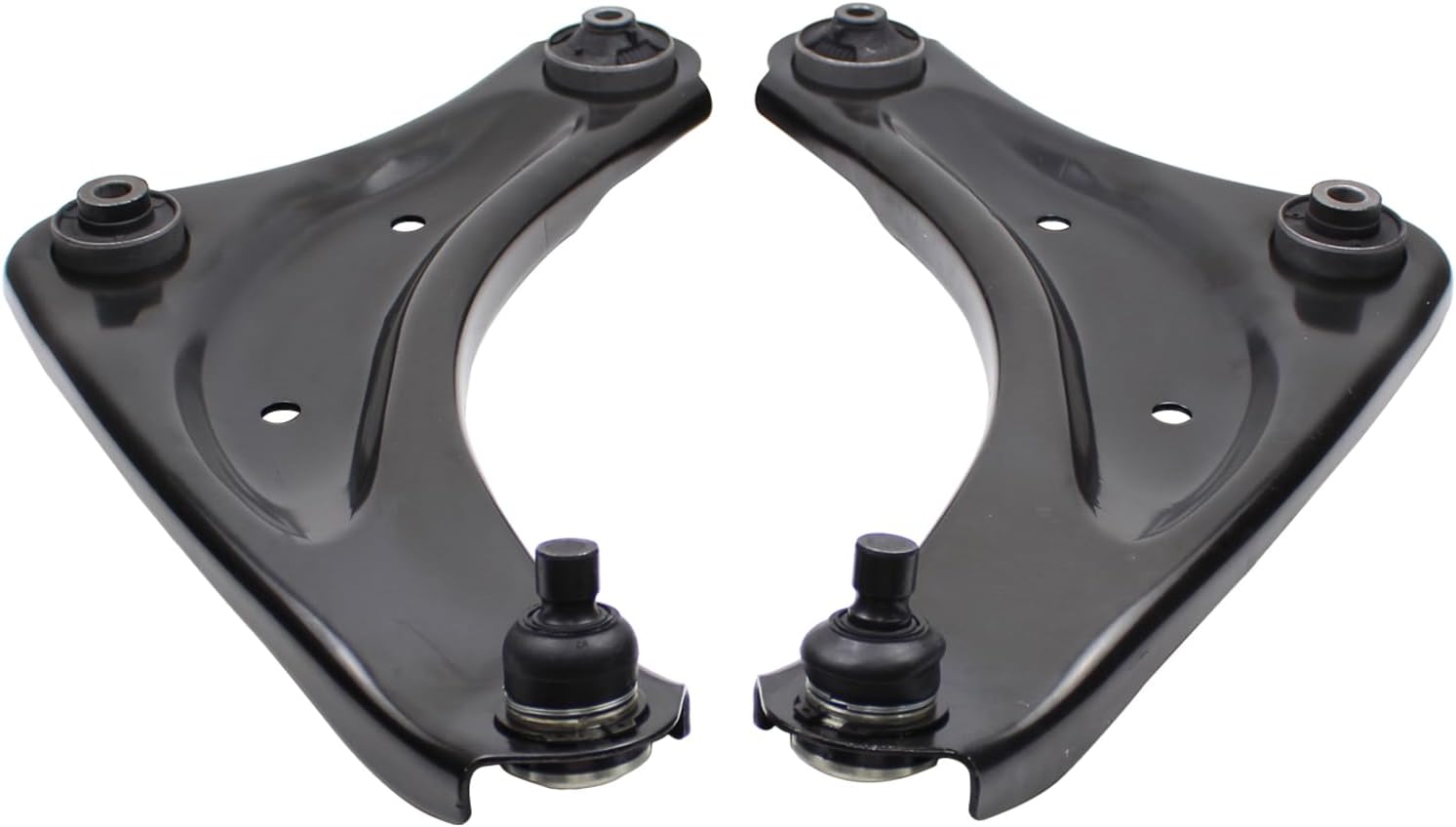

ApplianPar Front Left and Right Lower Control Arms with Ball Joint for Nissan Juke 2011-2017 Sentra 2017-2019
4.9 (31 items)
Limited Time SaleUS$39.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 214269854 | Release Date | 2026/04/12 | List Price | US$26.40 | Model Number | 214269854 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Replaces part numbers: 54501-5SN1A, 54501-1KA0A, 54501-1KA0B, 54501-1KA1B, 54500-5SN1A, 54500-1KA0A, 54500-1KA0B, 54500-1KA1BApplicable for Nissan Juke 2011-2017, Sentra 2017-2019Package includes: 1 x Front Left Side Lower Control Arm, 1 x 1 x Front Right Side Lower Control ArmInstallation Guide:1.Preparation: Remove the front wheel. Disconnect the sway bar link to allow the suspension to move freely. 2.Removal ProcedureRemove Ball Joint: Remove the bolt securing the ball joint to the steering knuckle. Use a pry bar to separate the ball joint from the knuckle.Disconnect Control Arm: Unbolt the two inner bolts connecting the control arm to the subframe.Remove Arm: Remove the old control arm3.Installation ProcedurePosition New Arm: Install the new control arm into the subframe mounting points.Tighten Inner Bolts: Hand-tighten the inner bolts first.Attach Ball Joint: Insert the ball joint into the steering knuckle. It may be difficult to seat, requiring a pry bar.Secure Fasteners: Tighten the ball joint bolt and inner bolts. Important: Tighten the inner bushing bolts while the suspension is loaded (at ride height) to prevent premature bushing failure.Reconnect Sway Bar: Reattach the sway bar link.Final Steps: Reinstall the wheel and lower the vehicle.
- Replaces part numbers: 54501-5SN1A, 54501-1KA0A, 54501-1KA0B, 54501-1KA1B, 54500-5SN1A, 54500-1KA0A, 54500-1KA0B, 54500-1KA1B
- Applicable for Nissan Juke 2011-2017, Sentra 2017-2019
- Package includes: 1 x Front Left Side Lower Control Arm, 1 x 1 x Front Right Side Lower Control Arm
- Installation Guide:1.Preparation: Remove the front wheel. Disconnect the sway bar link to allow the suspension to move freely;2.Removal Procedure:Remove Ball Joint: Remove the bolt securing the ball joint to the steering knuckle. Use a pry bar to separate the ball joint from the knuckle.Disconnect Control Arm: Unbolt the two inner bolts connecting the control arm to the subframe.Remove Arm: Remove the old control arm;
- 3.Installation Procedure:Position New Arm: Install the new control arm into the subframe mounting points.Tighten Inner Bolts: Hand-tighten the inner bolts first.Attach Ball Joint: Insert the ball joint into the steering knuckle. It may be difficult to seat, requiring a pry bar.Secure Fasteners: Tighten the ball joint bolt and inner bolts. Important: Tighten the inner bushing bolts while the suspension is loaded (at ride height) to prevent premature bushing failure.Reconnect Sway Bar: Reattach the sway bar link.Final Steps: Reinstall the wheel and lower the vehicle.
| Color | Black |
|---|---|
| Fit Type | Vehicle Specific Fit |
| Brand Name | ApplianPar |
| Unit Count | 2.0 Count |
| Manufacturer | ApplianPar |
| Material Type | Alloy Steel |
| Auto Part Position | Front Lower |
| Auto Part Orientation | Front |
| Manufacturer Part Number | 54501-5SN1A |
| Manufacturer Warranty Description | 12 months |
